Assignment VI: OpenCL Programming

The purpose of this assignment is to familiarize yourself with OpenCL programming.

Get the source code:

$ cd <your_workplace>
$ wget https://nctu-sslab.github.io/PP-s21/HW6/HW6.zip
$ unzip HW6.zip -d HW6

Modify your ~/.bashrc by adding the following configurations.

export PATH=$PATH:/usr/local/cuda/bin
export CUDADIR=/usr/local/cuda

1. Image convolution using OpenCL

Convolution is a common operation in image processing. It is used for blurring, sharpening, embossing, edge detection, and more. The image convolution process is accomplished by doing a convolution between a small matrix (which is called a filter kernel in image processing) and an image. You may learn more about the convolution process at Wikipedia: Convolution.

Figure 1 shows an illustration of the concept of applying a convolution filter to a specific pixel, value of which is 3. After the convolution process, the value of the pixel becomes 7—how the resulting value is computed is illustrated on the right of the figure.

Convolution Demo

Figure 1. Applying a convolution filter to the dark gray pixel of the source image (value of which is 3).

In this assignment, you will need to implement a GPU kernel function for convolution in OpenCL by using the zero-padding method. A serial implementation of convolution can be found in serialConv() in serialConv.c. You can refer to the implementation to port it to OpenCL. You may refer to this article to learn about the zero-padding method. Figure 2 shows an example of applying the zero-padding method to the source image (on the left) and thereby resulting a same-size, filtered output image (on the right).

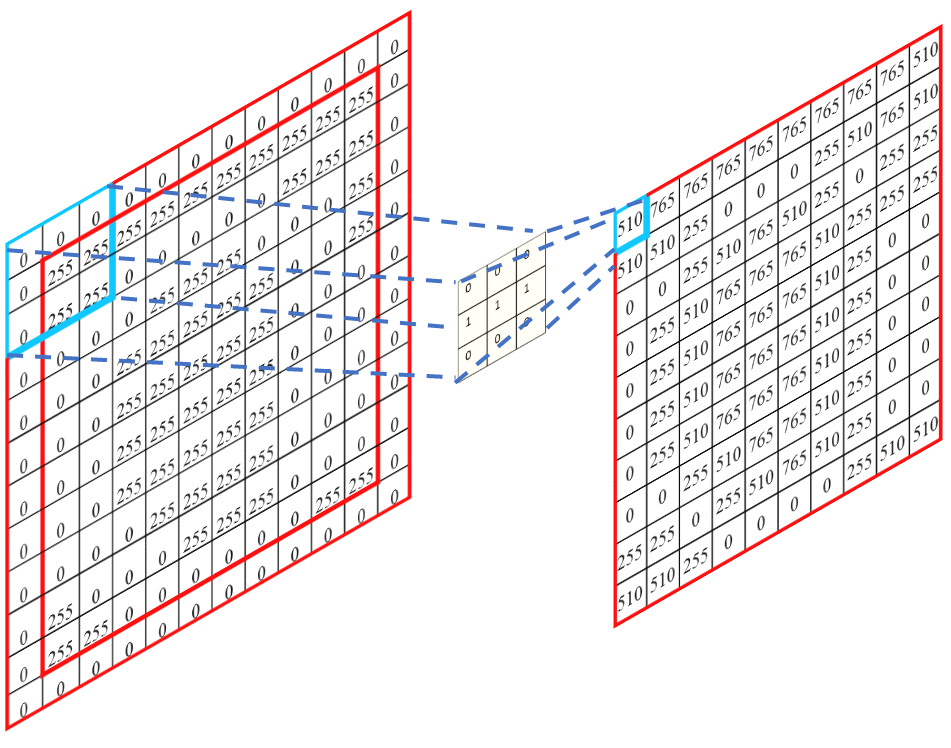

Zero Padding Visualization

Figure 2. Applying the zero-padding method to a source image.

Your job is to parallelize the computation of the convolution using OpenCL. A starter code that spawns OpenCL threads is provided in function hostFE(), which is located in hostFE.c. hostFE() is the host front-end function that allocates memories and launches a GPU kernel, called convolution(), which is located in kernel.cl.

Currently hostFE() and convolution() do not do any computation and return immediately. You should complete these two functions to accomplish this assignment.

You can build the program by typing make, and run the program via ./conv.

Your program should read an input image from input.bmp or a certain image file by using the option -i <input_image>, perform image convolution, and output the result image into output.bmp.

You can use the command ffmpeg -i <source.png> -pix_fmt gray -vf scale=600:400 <output.bmp> to make your own images for testing.

You can use a different filter kernel by adding option -f N, where N is either 1 (by default), 2, or 3, and indicates which filter kernel is used. Each filter kernel is defined in a CSV file (filter1.csv, filter2.csv, or filter3.csv). The first line of the CSV file defines the width (or height) of the filter kernel, and the remaining lines define the values of the filter kernel.

The whole command to run the program:

Usage: ./conv [options]
Program Options:
  -i  --input   <String> Input image
  -f  --filter  <INT>    Use which filter (0, 1, 2)
  -?  --help             This message

2. Requirements

You will modify only hostFE.c and kernel.cl.

Your program should work for any input image. TA will use an another image to test the code. Notice that a similar performance is expected for a different image.

Note: You cannot print any message in your program.

3. Grading Policies

NO CHEATING!! You will receive no credit if you are found cheating.

Total of 100%: - 33% for each of the three filters (filter1.csv, filter2.csv, and filter3.csv). - The breakdown of the 33%: - 13%: Your parallelized program passes the verification. - 20%: The speedup over the serial version should be greater than 5.0.

4. Evaluation Platform

Your program should be able to run on UNIX-like OS platforms. We will evaluate your programs on the workstations dedicated for this course. You can access these workstations by ssh with the following information.

The workstations are based on Ubuntu 18.04 with Intel(R) Core(TM) i5-7500 CPU @ 3.40GHz processors and GeForce GTX 1060 6GB. g++-10, clang++-11, cuda10.2, and OpenCL1.1 have been installed.

IP Port User Name Password
140.113.215.195 37076-37080, 37091, 37093, 37094 {student_id} {Provided by TA}

Notice: We will only use one of the ports above to grade the assignments.

ATTENTION: Never touch 37095. It is for NIS and NFS.

Login example:

$ ssh <student_id>@140.113.215.195 -p <port>

You can use the testing script test_hw6 to check your answer for reference only. Run test_hw6 in a dictionary that contains your HW6_XXXXXXX.zip file on the workstation.

5. Submission

All your files should be organized in the following hierarchy and zipped into a .zip file, named HW6_xxxxxxx.zip, where xxxxxxx is your student ID.

Directory structure inside the zipped file:

Zip the file:

$ zip HW6_XXXXXXX.zip kernel.cl hostFE.c

Be sure to upload your zipped file to new E3 e-Campus system by the due date.

You will get NO POINT if your ZIP’s name is wrong or the ZIP hierarchy is incorrect.

Due Date: 2021/06/06 00:00
